Insert system
Description

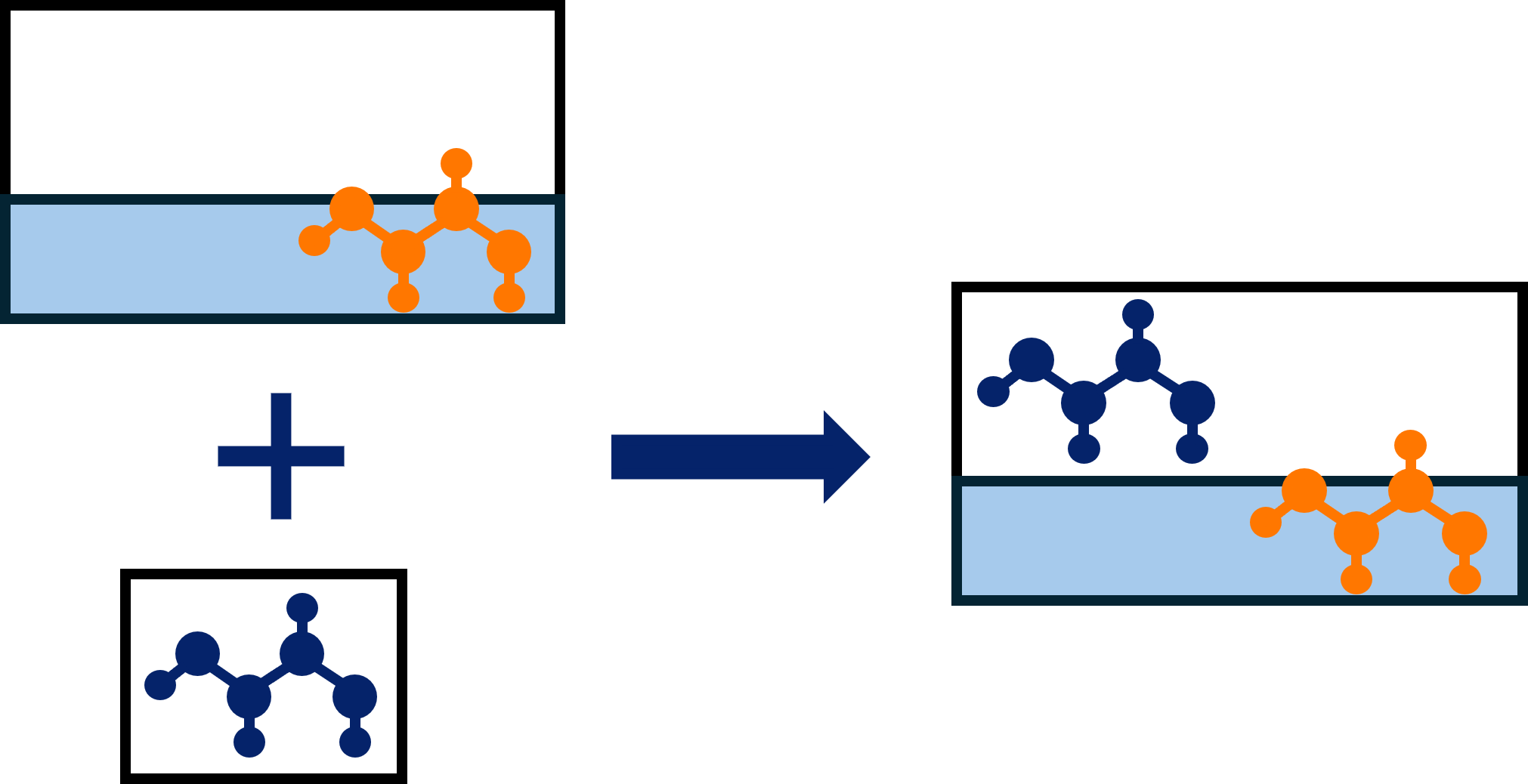

This function inserts a system into a parent (host) system. The position of the inserted system is determined by selecting a reference point on the inserted system and placing it at a specific insertion point within the parent system’s cell. No automatic checks are performed to ensure proximity to other atoms, so it is the user’s responsibility to place the system correctly. Additionally, periodic boundary conditions (PBCs) are not applied, meaning the inserted system can be placed outside the cell.
Latest version
Allowed number of parents: 2
-
Parent system
-
System to insert
| Parameter | Description | Value type | Value restrictions | Default value | Units |
|---|---|---|---|---|---|
Reference point for the insertion |
Origin point of the inserted system. Value refer to the selection below. |
selector |
“min”, “max”, “geocen” |
min |
N/A |
Selection for origin point: component name |
The component name of the atoms in the group used to determine the origin point. Only needed when the translation mode is “origin-target”. |
selector_component |
component types, “all” |
“all” |
N/A |
Selection for origin point: atom kind |
The atom kind of the atoms in the group used to determine the origin point. Only needed when the translation mode is “origin-target”. |
selector_atom_type |
atom types, “all” |
“all” |
N/A |
Selection for origin point: atom name |
The atom name of the atoms in the group used to determine the origin point. Only needed when the translation mode is “origin-target”. |
selector_atom_name |
atom names, “all” |
“all” |
N/A |
Insertion point |
The insertion point within the host system, refers to the cell. |
selector |
“min”, “max”, “center”, value |
min |
N/A |
