Build Supercell
Description

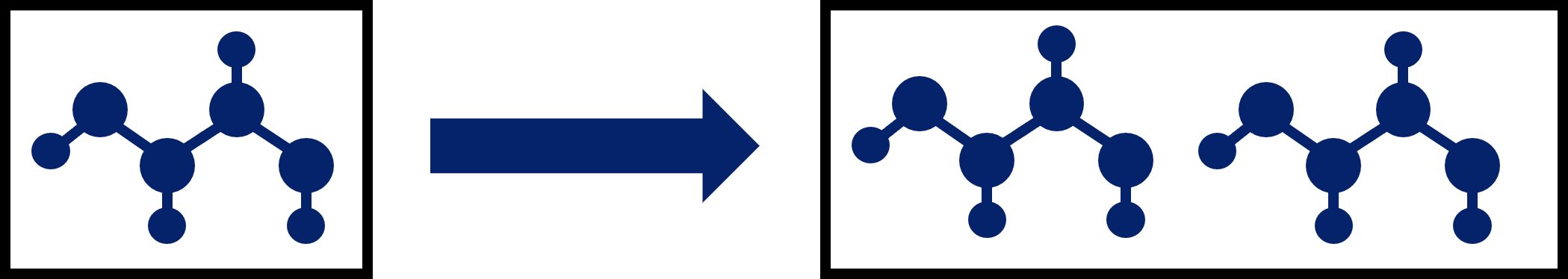

This function builds a supercell of the system. By default, it replicates the entire system, but you can choose to replicate only specific components by selecting their names in the dedicated input field.
Latest Version
Allowed number of parents: 1
| Parameter | Description | Value type | Value restrictions | Default value | Units |
|---|---|---|---|---|---|
Component to replicate |
The component name that shall be replicated |
Selector |
all, component_names |
all |
N/A |
Replication factor x |
The replication factor in the x dimension |
Integer |
- |
0 |
N/A |
Replication factor y |
The replication factor in the y dimension |
Integer |
- |
0 |
N/A |
Replication factor z |
The replication factor in the z dimension |
Integer |
- |
0 |
N/A |
